Details
Technical parameters:
1. Overall dimension: 32mx0.9mx2.1m (length x width x height)
2. Drying length: 27m
3. Temperature distribution:
One layer ≤ 80 ° C
Second floor 80 ° C ~ 120 ° C
Three layers 160 ° C ~ 180 ° C
Four layers 180 ° C ~ 220 ° C
4. Adaptive products: φ 2.5~ φ 5.0 drying of acid electrode
5. Operation cycle: 30 minutes
6. Outlet temperature: ≤ 20 ° C at room temperature
Feature Description:
1. The furnace has all the properties of HLA type. It is the second generation product of our company and belongs to energy-saving equipment. It has less thermal bridge, reduces heat loss and has good thermal insulation performance. It is the most advanced and energy-saving product in China. It consumes 35kg coal and 10kg oil per ton of electrode drying, which is 37% lower than the national standard.
2. The power consumption of the furnace is low. The total power consumption of driving fan and cooling fan is no more than 9kw, which is lower than that of other domestic furnaces.

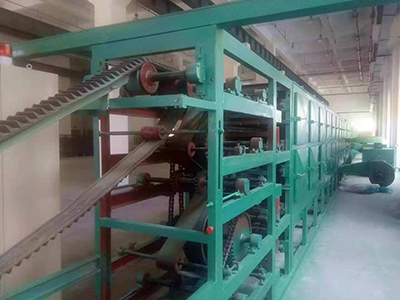

3. The furnace is transported by 12a chain to ensure φ 5.0 when the welding rod runs, there will be no indentation, and a rubber block is attached to the first layer of conveying chain of the furnace.

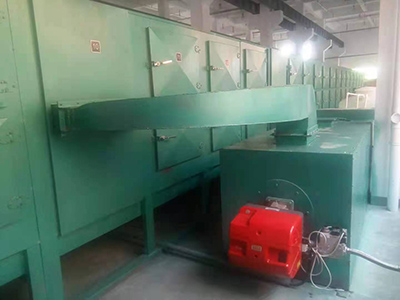

4. The furnace is equipped with a coal-fired furnace with advanced design and full and complete combustion.
5. In order to ensure durability, the outlet and high-temperature part of the coal-fired furnace are made of heat-resistant stainless steel, and the connecting pipes will not rust. High temperature resistant cast material forming plate can also be used.
6. The air duct supplies air directly to reduce air flow resistance.
7. The furnace has neat and beautiful appearance, advanced internal structure, convenient maintenance and saving maintenance cost.
8. The use of our company's multi-purpose electric welding electrode automatic drying furnace for electricity, oil, coal and steam, with flexible energy and less equipment investment, is the best measure to increase the economic benefits of the enterprise.
