Details

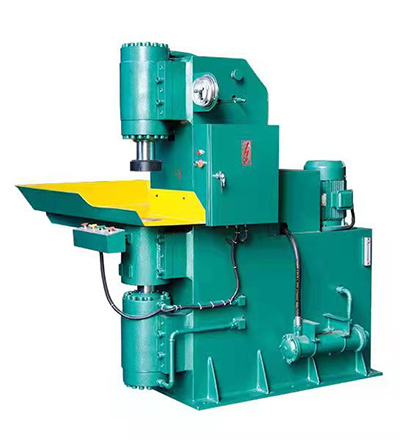

This series of models are applicable to the pressure coating of the surface coating of various types of ordinary acid and alkaline electrodes and special high-performance electrodes of 02.5 (2.0) ~ 5.8 (8.0) mm produced in large and medium batches. Hty25 machine is suitable for small batch of electrode pressure coating and welding process test. The overall structure design of this series of models adopts the joint production and operation of machinery, hydraulic pressure and electricity. According to the specification and process requirements of the user's pressure coated electrode, the flux delivery and pressure can be adjusted steplessly through the control valve group. The solder filling mode of this series of machines adopts the preset solder pellet, and the coating die head is 45 °. Replaceable sleeves are used for powder channels. Unloading type deviation adjusting structure, with small deviation adjusting torque, strong stiffness and precision
The welding rod is pressed and formed by this die. The solder coating is dense, the surface is smooth, and the eccentricity is stable.
