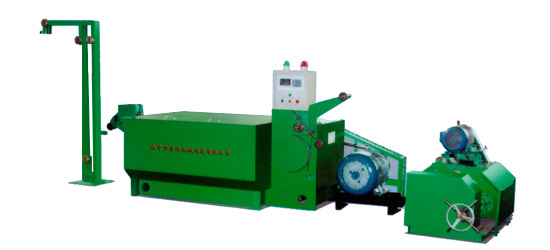

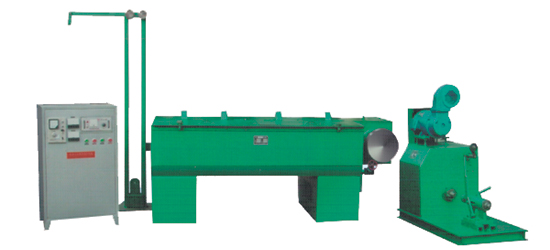

Description of new water tank wire drawing machine
① This product is an extended development based on the achievements of German water tank wire drawing machine (using synchronous pulley Technology). The purpose is to transform scientific and technological achievements into productive forces as soon as possible, put them on the market as soon as possible, create greater economic benefits and better serve economic construction and social development.
② Adopting the first technical achievement of foreign synchronous belt pulley to transmit high power, the power box structure without gearbox rotation is innovatively developed; The tower wheel water tank body and the power box are successfully stripped, and a decontamination box is added between the two boxes. The design of the three box structure has the advantages of reasonable design, novel results and high reliability. It is suitable for industrial production.
③ The new control technology of single board microcomputer centralized control and double frequency converter is adopted to ensure that the tension control between the outgoing line of the wire drawing machine and the I-wheel take-up machine is kept constant, so that the wire drawing machine and the take-up machine are always synchronized in the drawing process, and the wire winding is uniform and the tightness can be adjusted. Due to the use of intelligent control, simple operation, reliable and safe equipment operation, this technology fills the domestic gap and reaches the international advanced level.
④ The wire drawing unit uses a disordered wire protection device and a broken wire holding device. When the iron wire of the defense frame is in disorder during the operation of the equipment, the whole unit will shut down immediately; When the wire breaks between any two drawing dies between the tower wheels in the water tank, the unit will stop urgently to ensure that the broken wire will not be pulled out of the die, which greatly reduces the time and labor intensity of re threading the die. This technology fills the domestic gap and reaches the international advanced level.
⑤ Due to the application of new technology, the drawing line speed can reach 1000m / min. Increasing the drawing efficiency by 300% will bring great economic benefits to production enterprises.
⑥ The equipment is suitable for metal products industry and stainless steel products industry.
