Details

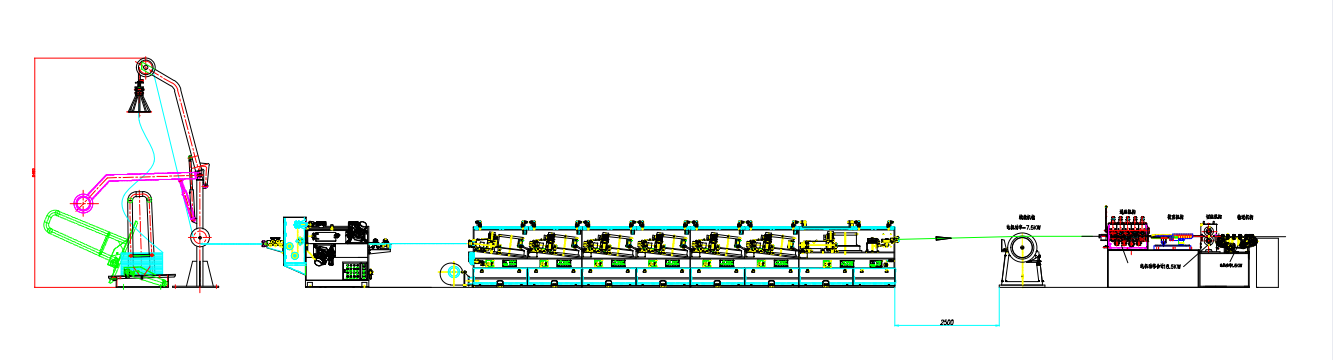

GQ high-speed and high-precision wire cutter is a complete set of equipment applied to welding rod production enterprises. Its function is to meet the requirements of high efficiency and high standard for cutting steel wires under the requirements of low energy consumption and low noise. It can improve the production efficiency and product quality of welding rod production enterprises and reduce the consumption of resources (energy and raw materials). GQ type high-speed wire cutting function is used in conjunction with wire drawing machine. From wire rod, scale removal, wire drawing to wire cutting for one-time forming, it has a high degree of automation and simple process. It can cut about 1000 steel cores per minute. It is an ideal model to replace the existing electrode wire cutting machine in China. The process flow is as follows:
Quality of cut-off welding core:
1. The limit deviation of steel wire length is ± 1.0mm.
2. The cut of steel wire shall be flat without burr.
3. Surface roughness of steel wire ≤ RA3 2。
4. Straightness tolerance of steel wire ≤ 1mm.
